roads
parking lots for cars and trucks
fire roads
construction sites
airports and landing sites
maneuvering areas
Parking grid

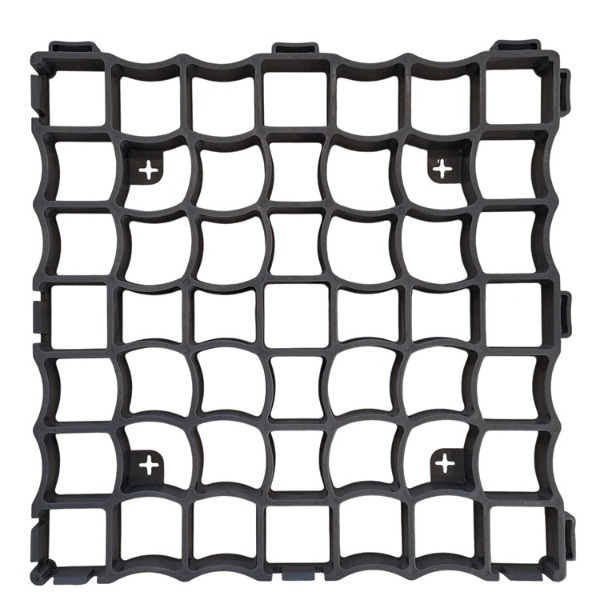

Oplast H50 Strong
The Oplast 50 Strong grid is the strongest structure used for the construction of roads, parking lots, and maneuvering areas with heavy loads.
Height
5 cm
Biologically active surface
88,2%
Resilience
>300 tons/m2
Weight
2,5 kg
black
green
100% recycled product.
The product is made exclusively from waste processed in our company.
Water permeability.
Minimum 88% biologically active surface area.
High load-bearing capacity
The grid's design allows it to withstand very heavy loads generated by vehicle traffic.
National technical assessment
The product is accredited by the Road and Bridge Construction Institute.
SPECIFICATION AND TECHNICAL PARAMETERS
| Size | 50 x 50 cm | Weight of 1 grid | 2,5 kg |
| Height | 5 cm | Number of pieces per m2 | 4 |
| Biologically active surface | 88,2% | National Technical Assessment | IBDiM-KOT 2023/0951 |
| Minimum wall thickness | 6,1 mm | Material | PP/PE |
| Load resistance | >300 tons/m2 | Color | black/green |
| Compressive strength | >3000 kN/m2 | Dimensional stability | 3% |
PACKING
High pallet (truck)
| Quantity: | 212 / 53 m2 |
| Pallet height: | max 2,45 m |
| Pallet size: | 120 x 100 cm |
| Pallet weight: | 460 kg |
| Transportation: | truck 26 pallets |
Low pallet (courier, spedition)
| Quantity: | 180 / 45 m2 |
| Pallet height: | max 2,10 m |
| Pallet size: | 120 x 100 cm |
| Pallet weight: | 410 kg |
| Transportation: | courier, spedition |
